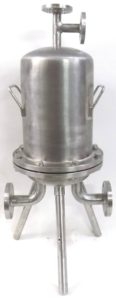

Hastelloy Filter housings are designed for 5”, 10”, 20”, 30” and 40” long filter cartridge. Filter housing are designed for single as well as multi cartridge 3 to 12 rounds design depending on customer requirement. Customised designs are also available for required pressure, temperature rating, line sizes and process fluid.
Features & Benefits
- Excellent resistance to corrosion
- FDA compliance sealing material as per Regulation 21-CFR-177-2600.
- Each housing is marked with identification number for future traceability.
- Supplied with lab test certificate as standard/ Mill EN 10204 3.1 Certificate if required.
Cartridge connection
- Code-7
- Code 3
- DOE
- BSP Threaded
- Code 8
Material of Construction
- Contact Parts : Hastelloy C22/276
- Non Contact Parts: SS 304/SS 316 or as required
- Gasket: Silicone/PTFE/EPDM/Viton/Nitrile/Teflon envelop silicone insert/Teflon envelop viton insert/(FEP viton/FEP Silicone- Body flange design only)
Surface Finish
- External Matt
- Internal <0.4µm Ra mirror
Pressure & Temperature Parameter
- Design Pressure: 10BarG as standard (High pressure housing also available as per requirement)
- Design Temperature: 150°C
Material Test Certification
- EN 10204 3.1 MTC on
Inlet/Outlet Connections Option
- Plain Pipe
- Tri Clover DIN 32676
- Companion TC
- Companion Flange
- ASA 150/300/600/900 Flange RF
- DIN 11851-2 Form A
- DIN 11851-2 Form B
- PN10 Flange
- PN16 Flange
- PN25 Flange
- Union SMS
- TC with Hose Barb
- Union DIN 11851
- RJT
- NPT Female Socket
- Weld Neck Flange RF
- NPT Female Socket
- NPT Male Threaded
- BSP Female Socket
- BSP Male Threaded
